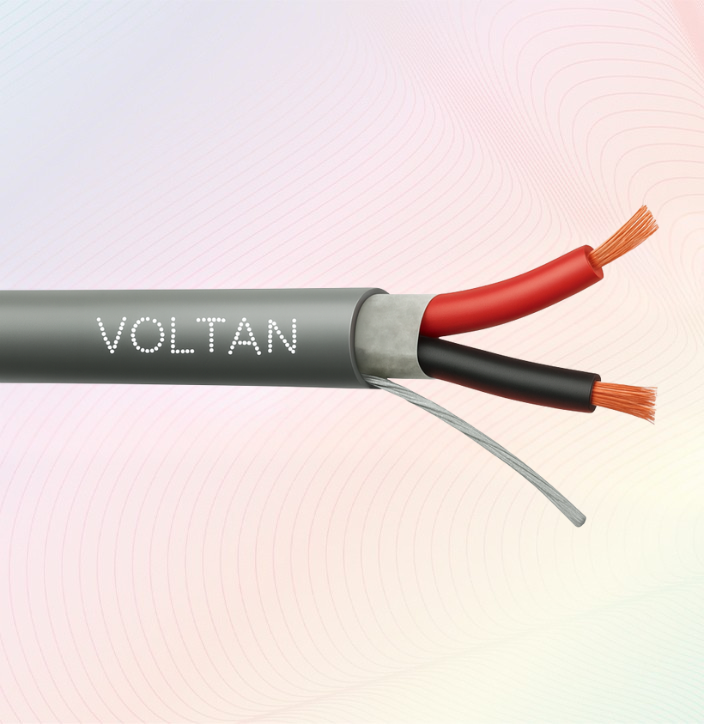

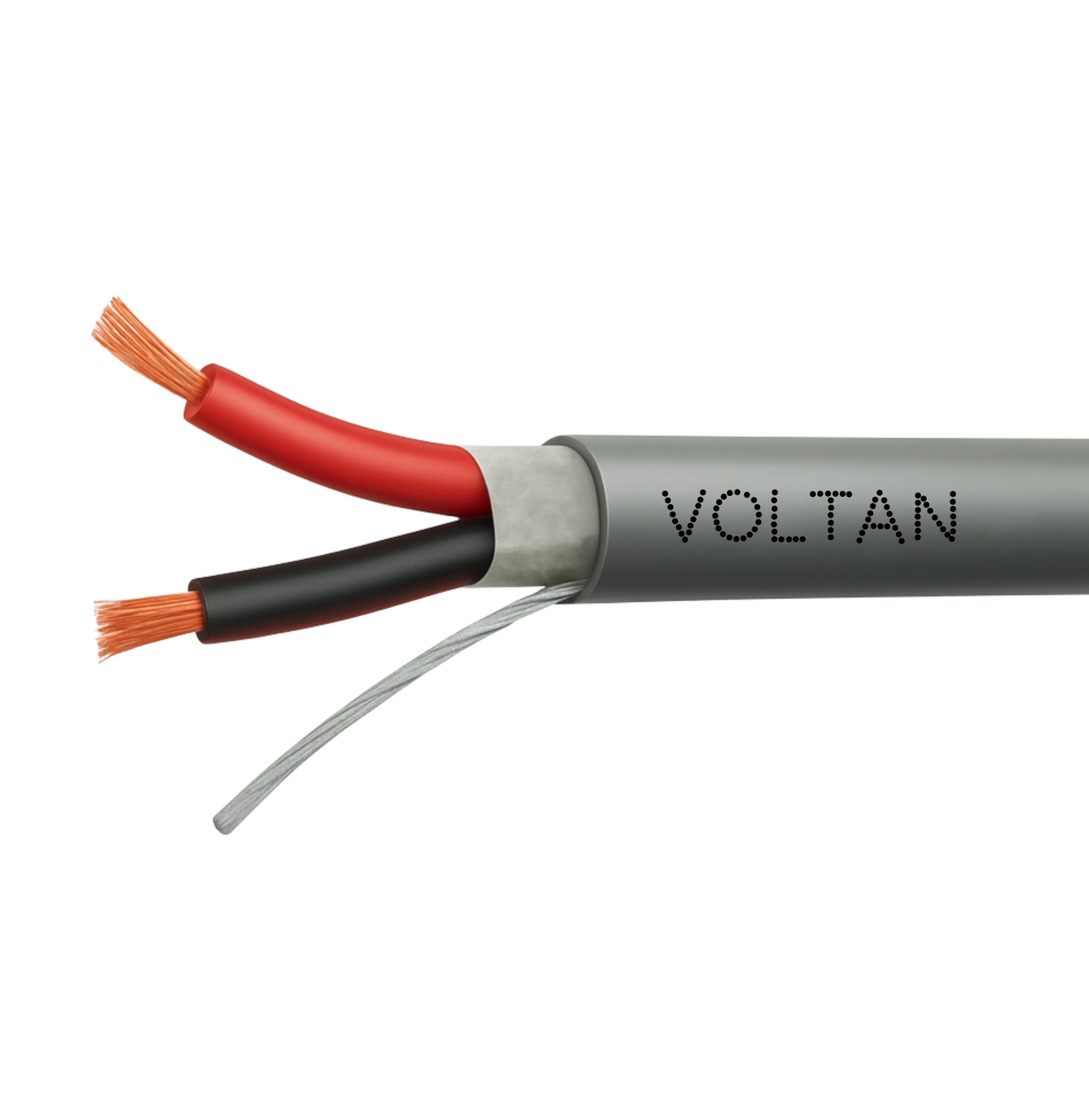

16 AWG Shielded LSZH

Safe and reliable 16 AWG shielded multi-conductor cable, available in 2C to 8C configurations with LSZH sheath. Offers low smoke, zero halogen protection, strong shielding against interference, and dependable performance for industrial and commercial applications.

Quick Enquiry Datasheet download test reports

Design

Name Value
Conductor N x Bare Copper Wire, 16 AWG Flexible
Cores 8
Drain Wire Tinned Copper
Insulation Polyolefin
Rip Cord Nylon Yarn
Screen Aluminium/Polyester 100% Coverage
Sheath Color Grey, RAL Code: 7046
Sheath Material HFFR / LSZH
Standard Length 305 Meters
Type Shielded Multi Conductor
