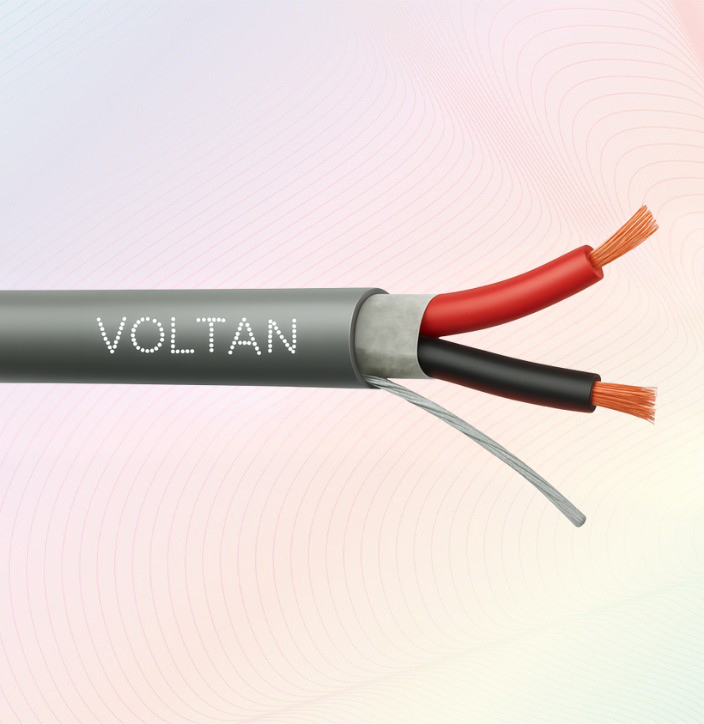

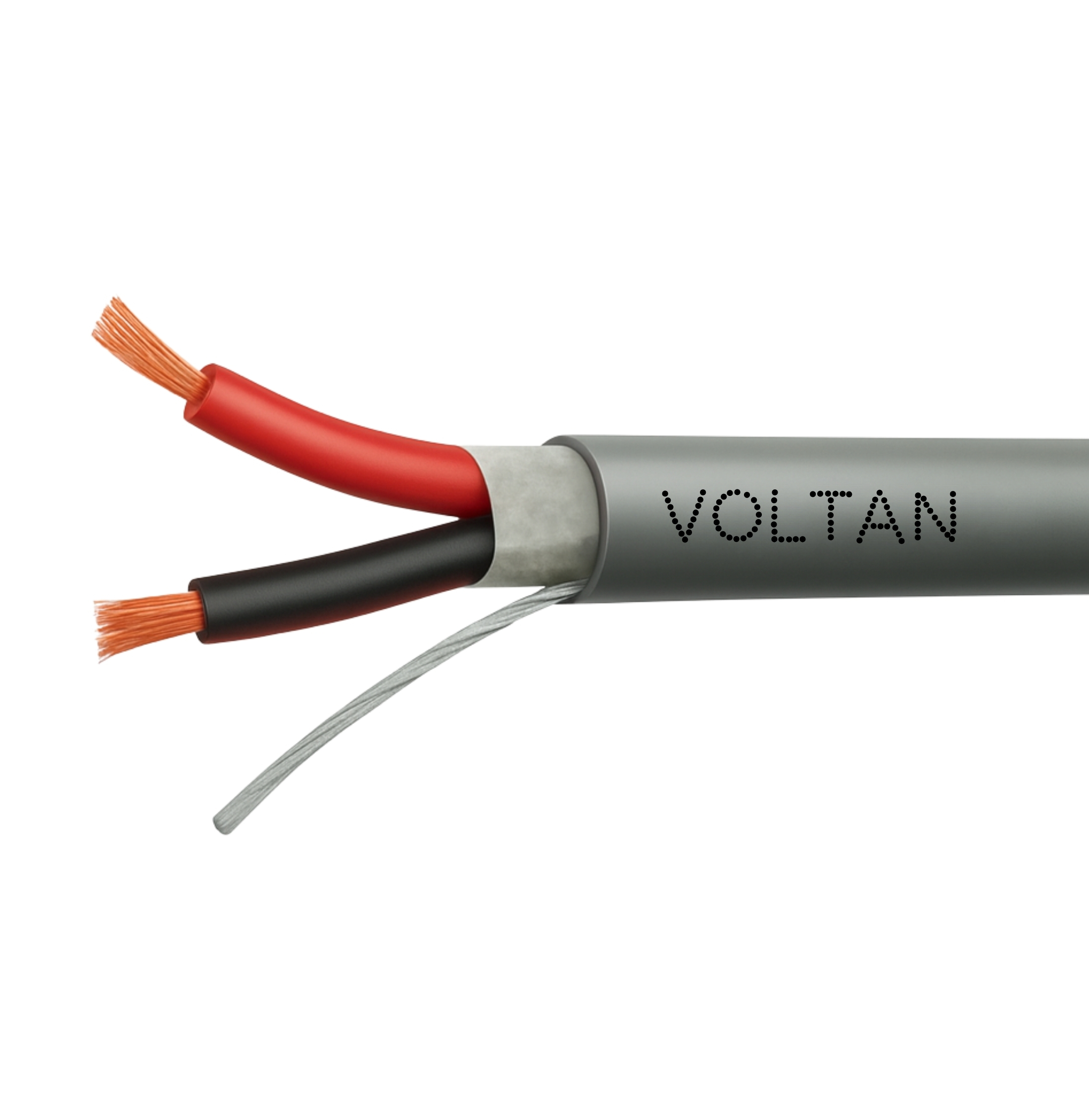

Versatile 16AWG shielded multi-conductor cable, available in 12C configurations with PVC sheath. Ensures dependable insulation, effective interference protection, and durable performance for industrial and commercial wiring applications.
| Name | Value |
|---|---|
| Conductor | N x Bare Copper Wire, 16 AWG Flexible |
| Cores | 12 |
| Drain Wire | Tinned Copper |
| Insulation | Polyolefin |
| Rip Cord | Nylon Yarn |
| Screen | Aluminium/Polyester 100% Coverage |
| Sheath Color | Grey, RAL Code: 7046 |
| Sheath Material | Flame-Retardant Polyvinyl Chloride (PVC) |
| Standard Length | 305 Meters |
| Type | Shielded Multi Conductor |
