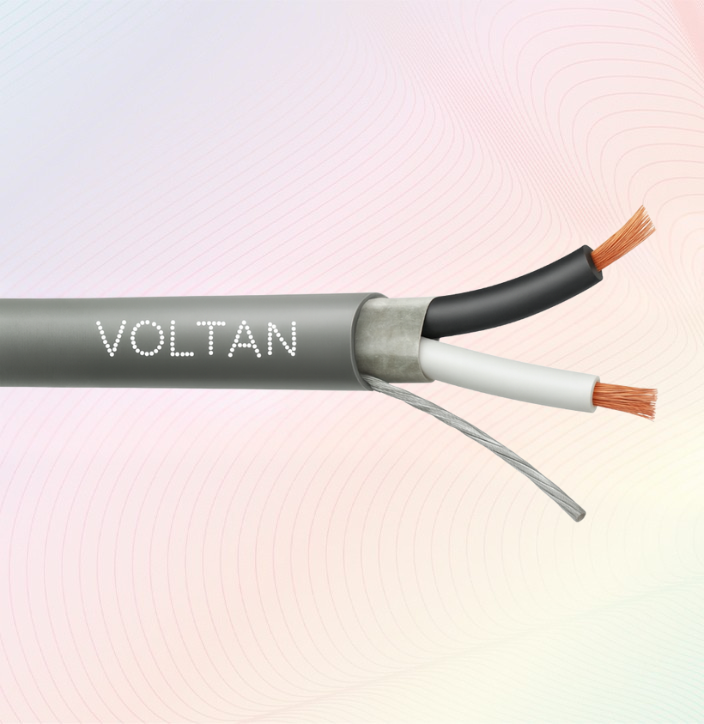

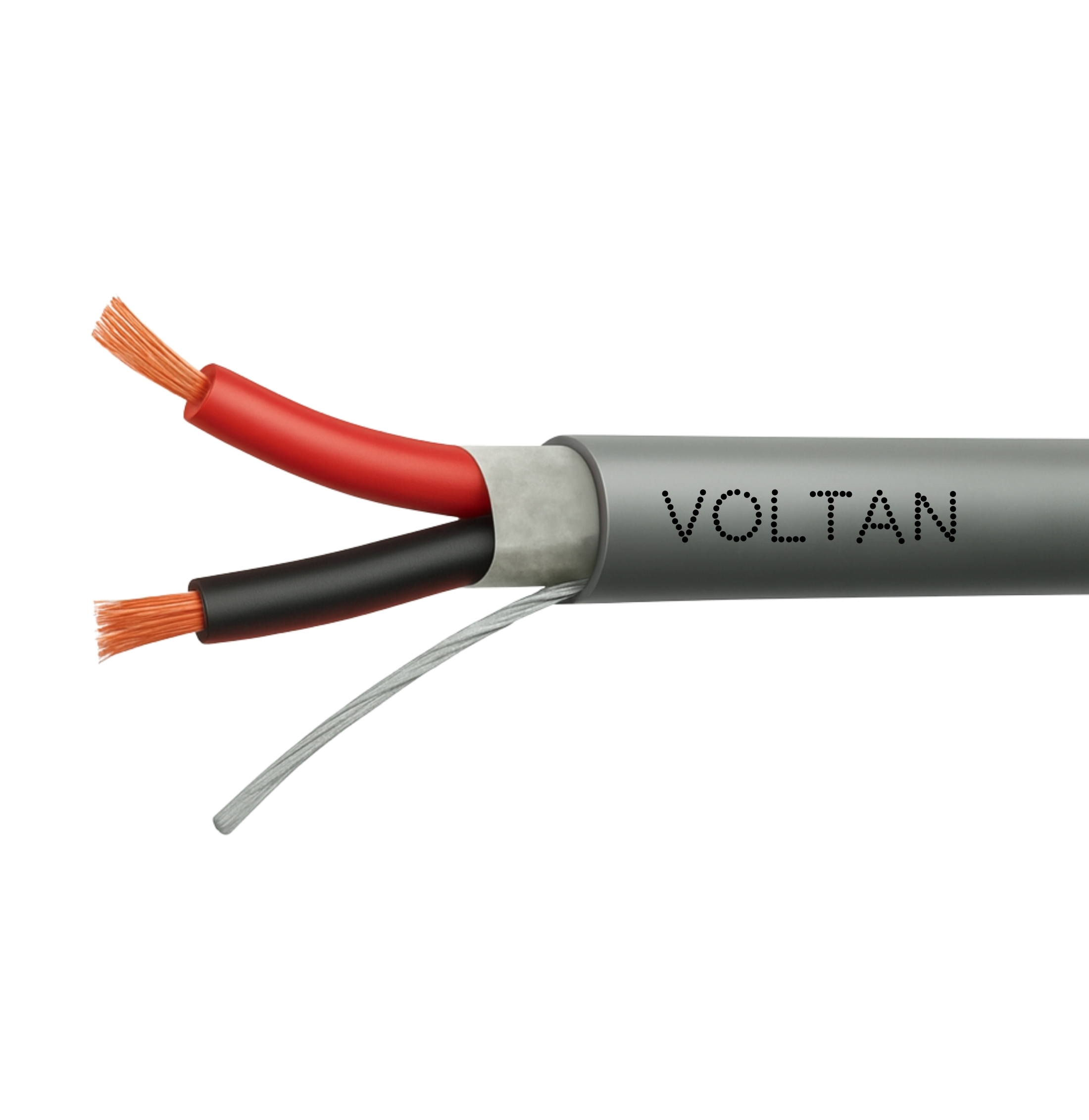

14 AWG Shielded PVC
Versatile 14AWG shielded multi-conductor cable, available in 2C to 8C configurations with PVC sheath. Delivers dependable signal protection, reduced interference, and durable insulation for industrial and commercial wiring needs.
Design
| Name | Value |
|---|---|
| Conductor | N x Bare Copper Wire, 14 AWG Flexible |
| Cores | 8 |
| Drain Wire | Tinned Copper |
| Insulation | Polyolefin |
| Rip Cord | Nylon Yarn |
| Screen | Aluminium/Polyester 100% Coverage |
| Sheath Color | Grey, RAL Code: 7046 |
| Sheath Material | Flame-Retardant Polyvinyl Chloride (PVC) |
| Standard Length | 305 Meters |
| Type | Shielded Multi Conductor |
