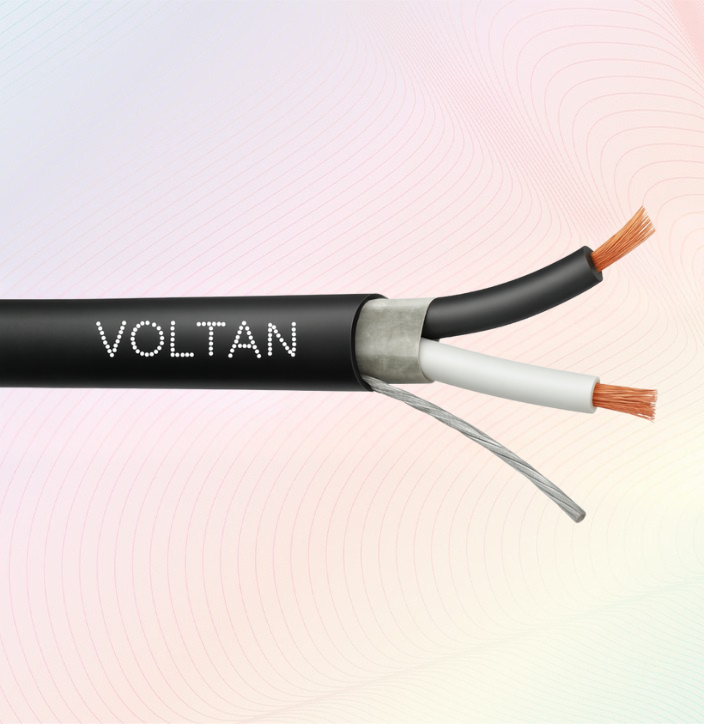

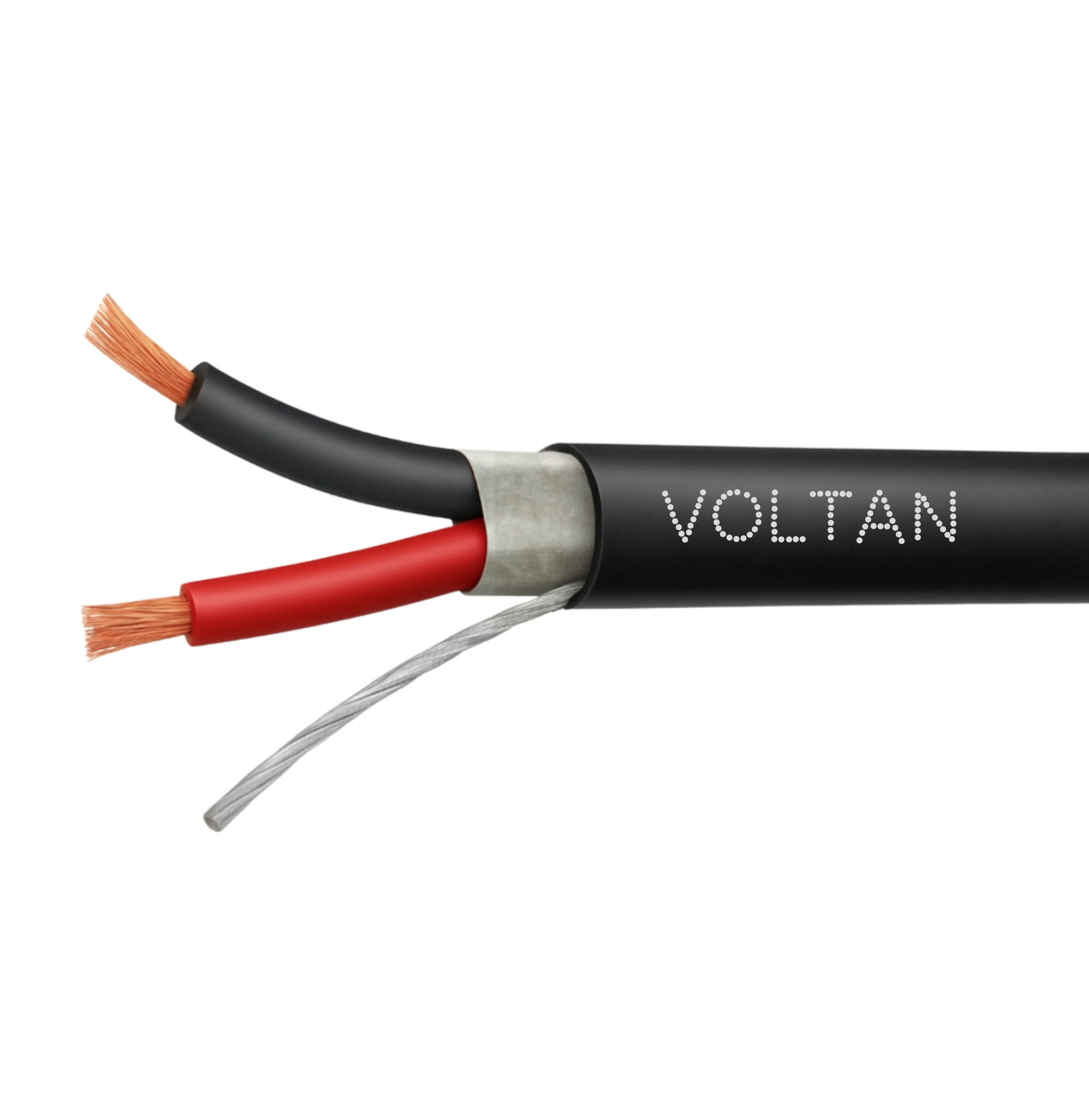

12 AWG Shielded PE
Rugged 12AWG shielded multi-conductor cable, available in 2C to 8C configurations with PE sheath. Offers excellent mechanical strength, moisture resistance, and reliable shielding for demanding outdoor and industrial applications.
Design
| Name | Value |
|---|---|
| Conductor | N x Bare Copper Wire, 12 AWG Flexible |
| Cores | 8 |
| Drain Wire | Tinned Copper |
| Insulation | Polyolefin |
| Rip Cord | Nylon Yarn |
| Screen | Aluminium/Polyester 100% Coverage |
| Sheath Color | Black, RAL Code 9005 |
| Sheath Material | PE |
| Standard Length | 305 Meters |
| Type | Shielded Multi Conductor |
