20 AWG Unshielded PVC

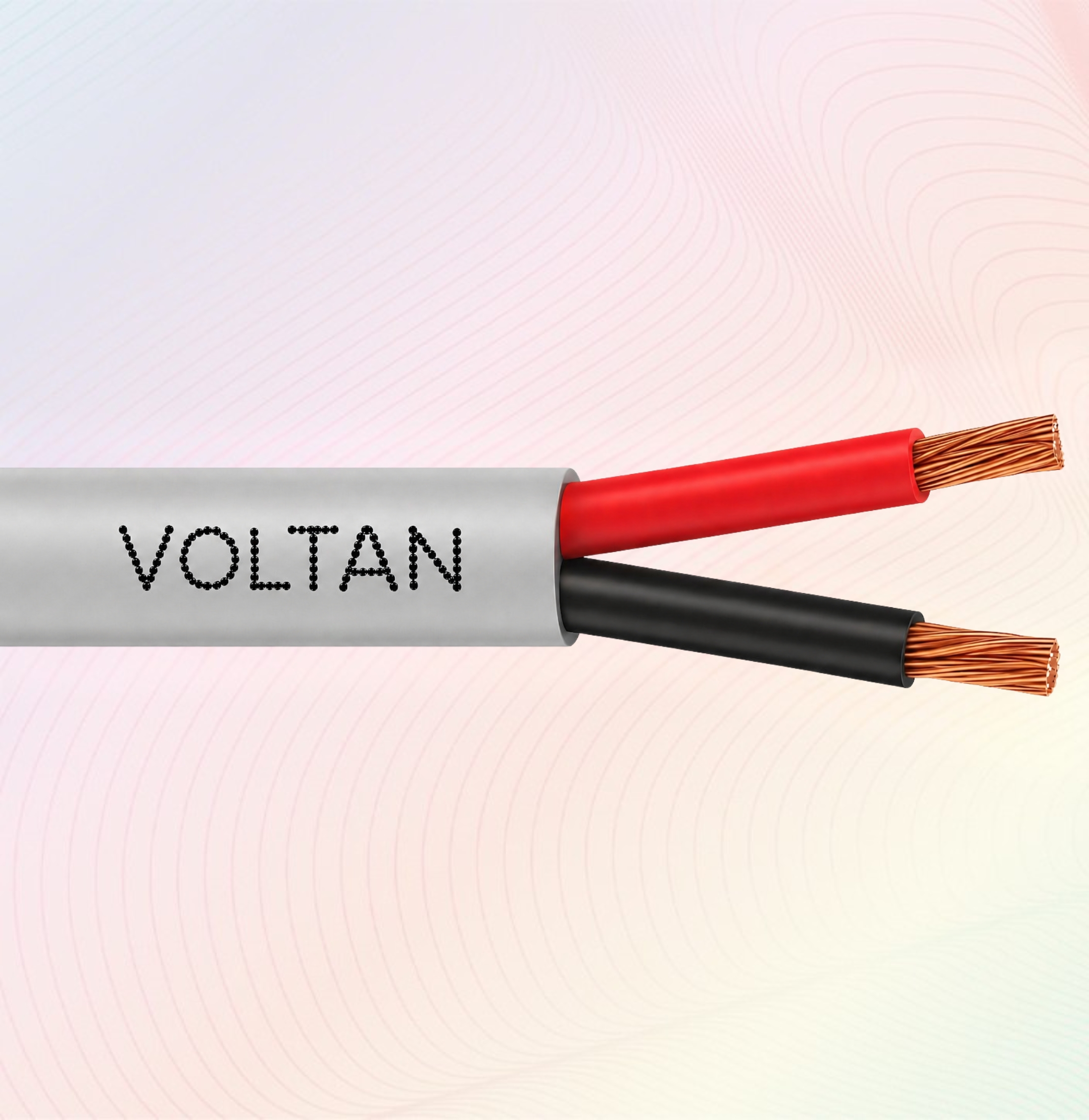

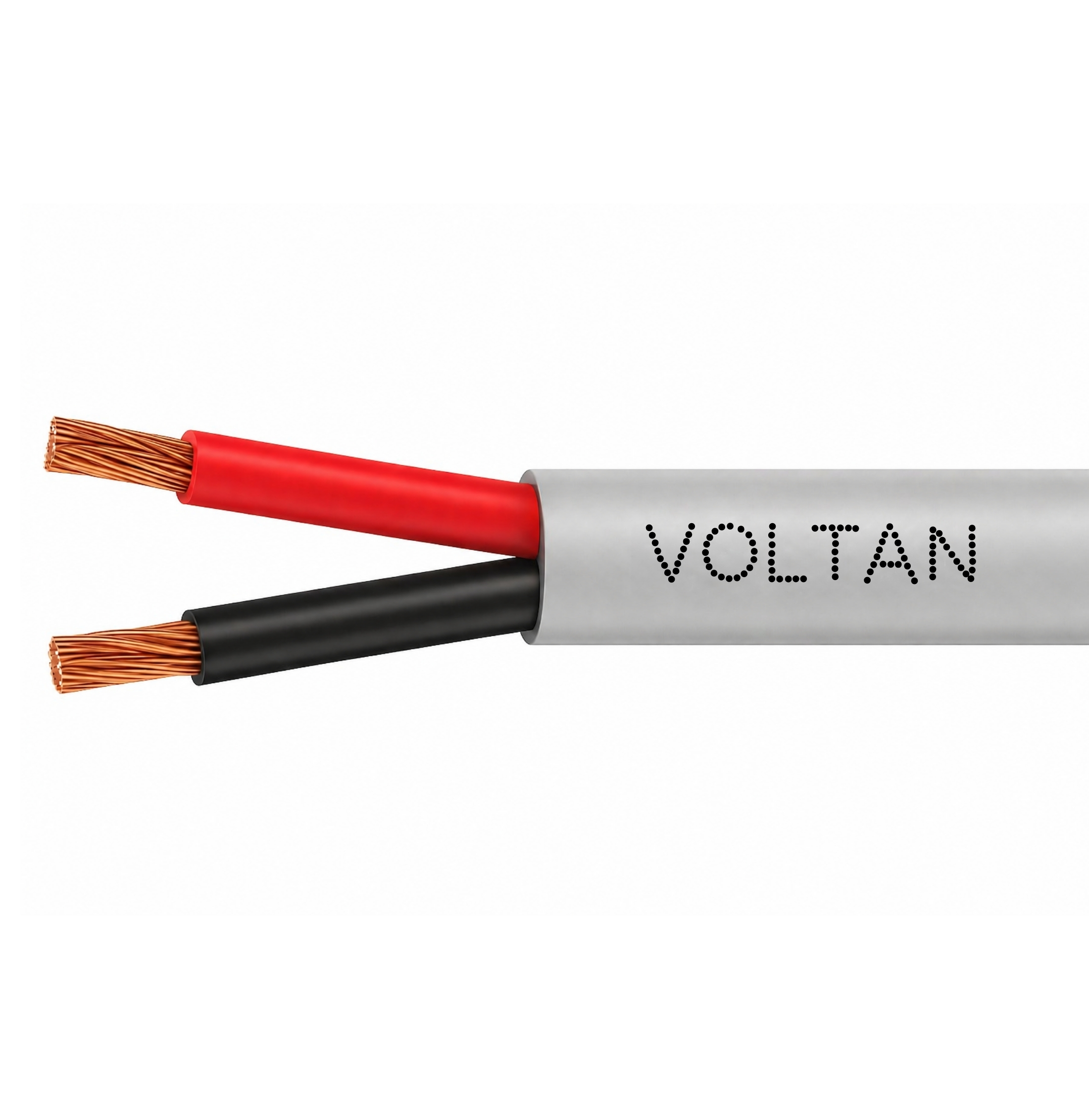

Unshielded Multi-Conductor Cable, 20AWG (2C–8C), PVC Sheath Durable and flexible PVC-sheathed cable for low-voltage signal and power applications. Offers reliable performance in controlled environments with easy installation and routing.

Quick Enquiry Datasheet download test reports

Design

Name Value
Conductor N x Bare Copper Wire, 20 AWG Flexible
Cores 8
Insulation Polyolefin
Rip Cord Nylon Yarn
Sheath Color Grey, RAL Code: 7046
Sheath Material Flame-Retardant Polyvinyl Chloride (PVC)
Standard Length 305 Meters
Type Unshielded Multi Conductor
