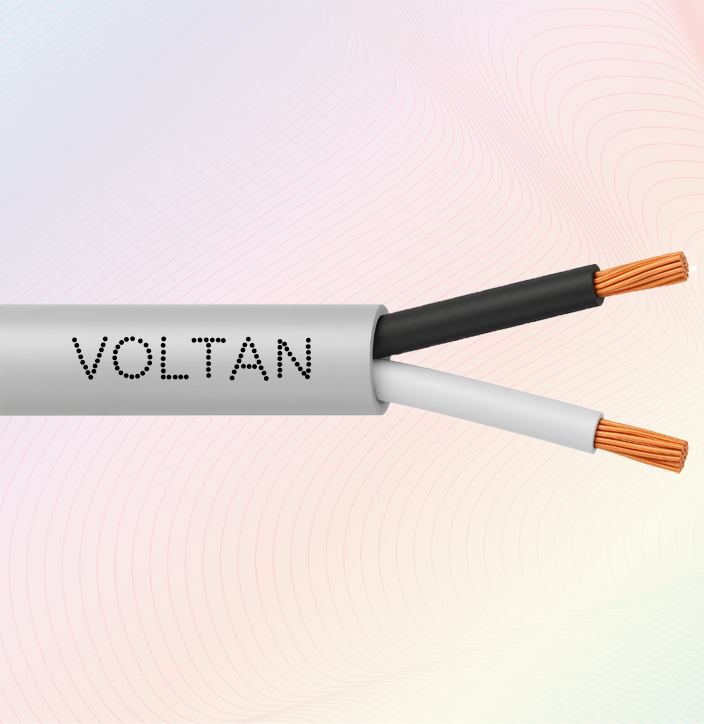

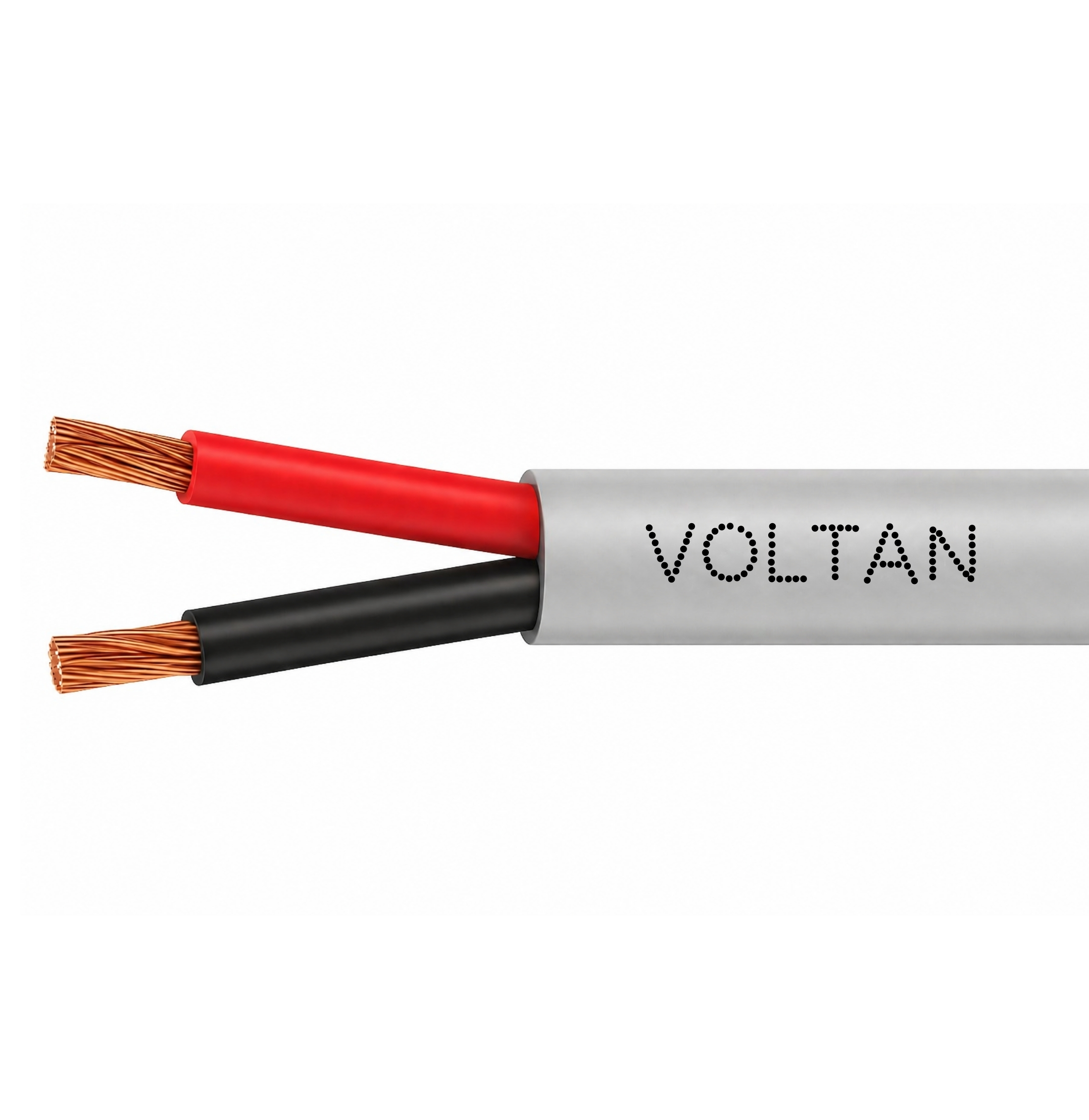

14 AWG Unshielded LSZH

2C to 8C, 14AWG Unshielded Multi-Conductor Cable with HFFR/LSZH Sheath – Engineered for safe, low-voltage power and signal transmission. Halogen-free, flame-retardant design minimizes smoke and toxic emissions in critical environments.

Quick Enquiry Datasheet download test reports

Design

Name Value
Conductor N x Bare Copper Wire, 14 AWG Flexible
Cores 8
Insulation HFFR / LSZH
Rip Cord Nylon Yarn
Sheath Color Grey, RAL Code: 7046
Sheath Material Flame-Retardant Halogen Free (HFFR/ LSZH)
Standard Length 305 Meters
Type Unshielded Multi Conductor
