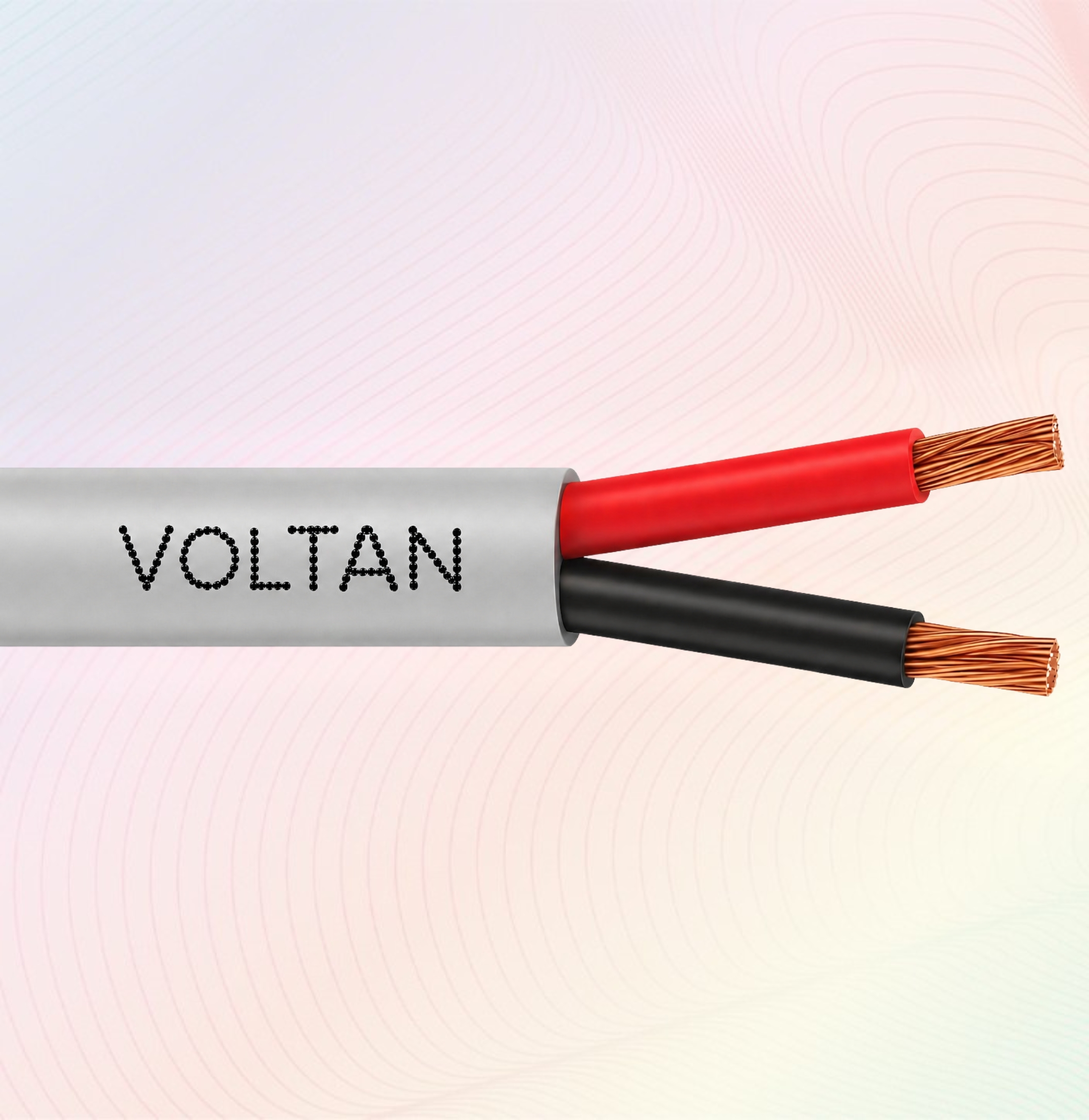

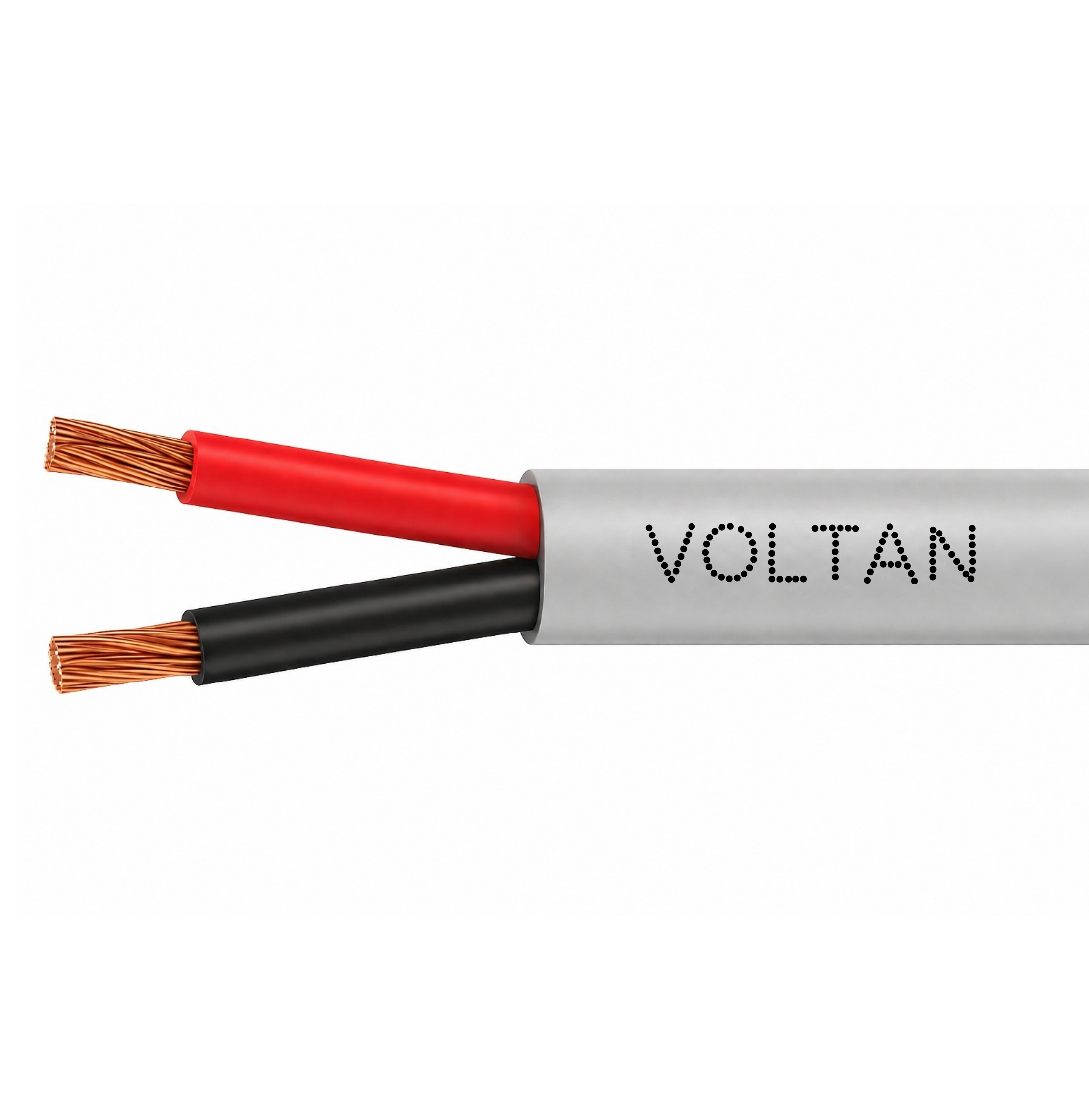

16 AWG Unshielded LSZH

2C to 8C, 16AWG Unshielded Multi-Conductor Cable with HFFR/LSZH Sheath – Ideal for low-voltage applications requiring flame-retardant, halogen-free insulation. Offers reliable signal transmission with enhanced safety and reduced smoke emission.

Quick Enquiry Datasheet download test reports

Design

Name Value
Conductor N x Bare Copper Wire, 16 AWG Flexible
Cores 8
Insulation Polyolefin
Rip Cord Nylon Yarn
Sheath Color Grey, RAL Code: 7046
Sheath Material Sheath: Flame-Retardant Halogen free (HFFR/LSZH)
Standard Length 305 Meters
Type Unshielded Multi Conductor
